- 30W Output Power
- Strong Power
- 1100,000 Hours
- Long Working Life
- Metal Plate
- light-weight and High Strength
- Intelligent Control
- Full-automation
- Power Consumption≤1KW
- Energy-saving
- Industrial Designs
- Independent R&D
Technical Parameter
| Wavelength | 10.64um |
|---|---|
| Laser power | 10W/30W/50W |
| Marking Area | 120mm x 120mm |
| Max. Marking Speed | 7000mm/s |
| Marking Depth | ≤5mm |
| Repeat Positioning Accuracy | 0.001mm |
| Min. Character | 0.6mm |
| Min. Line Width | 0.012mm |
| Power Supply | 220V 50Hz |
| Power Consumption | <1000W |
| Overall Weight | 150KG |
| Machine Dimensions | 700mm x 770mm x 1580mm |
| Overall Structure | Metal Plate |

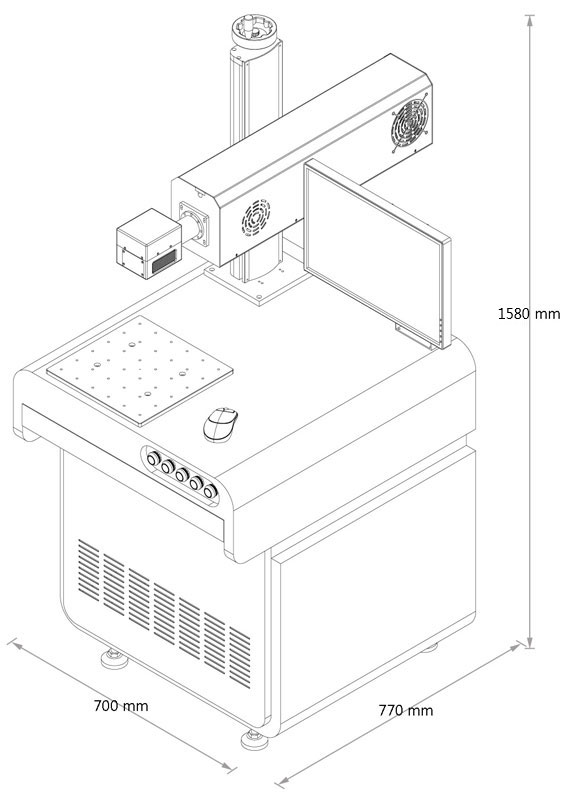

Dimensions
Length：700mm
Width：770mm
Height：1580mm
Equipment Resolution
Supporting Format
Vector format
- AI
- PLT
- DXF
- JPC
- SVG
- NC, G
- BOT
- DST
Bitmap format
- BMP
- JPG
- JPEG
- GIF
- TGA
- PNG
- TIF
- TIFF
Package Contents
Equipment/Laser protective goggles/Lens Cleaning Paper/Testing Black Paper/Dimming Metal Card/Tooling
